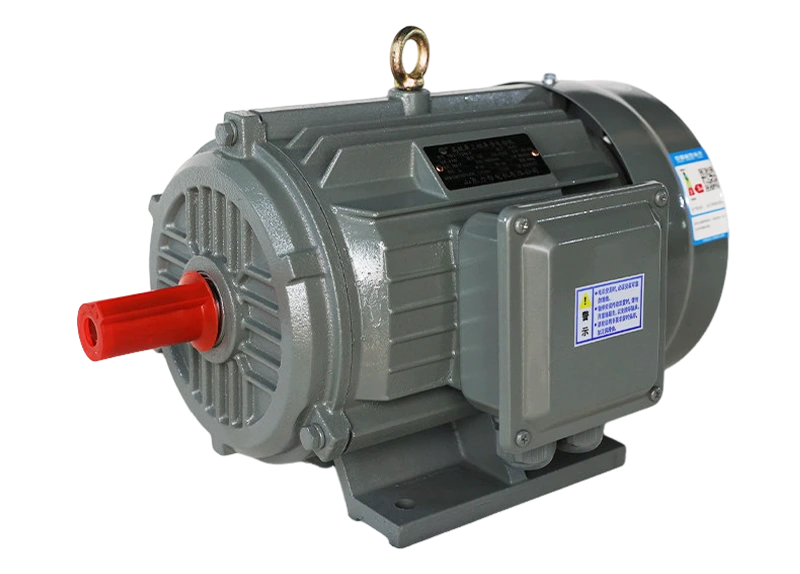

Troubleshooting Faults in Three-Phase Asynchronous Motors

I. Motor Fails to Start

1.  Power supply issues: Motor not energized, phase loss, or low voltage.

2.  Damaged contactor or switch not activated.

3.  Control circuit buttons or wiring positions not reset.

4.  Inspect motor body for burnt windings, short circuits, or ground faults. Check bearings and belts for jamming, rotor rubbing against stator, or excessive load.

II. Motor Trips Immediately Upon Startup (Blows Fuses)

1.  Winding short circuit, ground fault, or power line short circuit.

2.  Motor jammed or overloaded.

3.  Contactor stuck, or motor power rating too low.

III. Motor hums but does not rotate

This is a classic phase loss condition. A phase-lost motor will burn out within minutes of operation and must be shut down immediately.

IV. Severe motor overheating

1. Motor overload. Excessive load, tight belt, high resistance in fan or pump

2. Voltage imbalance or phase loss causing partial winding short circuit

3. Bearing damage due to oil shortage, fan failure, rotor rubbing against housing

4. High ambient temperature, humidity, or poor ventilation

V. Excessive vibration and loud abnormal noise

1. Bearing oil shortage, damage, or excessive clearance

2. Rotor imbalance or fan blade damage

3. Uneven base mounting, loose foot bolts, or misaligned coupling
