| 3C Certificate Number | 2020980401001203 |
| Number of Phases | Three-phase motor |
| Power Supply Type | AC power |
| Power Source | AC motor |
| Function Type | Drive motor |
| Protection Type | Protected |
| Brand | Longchi Motor |
| Insulation Class | F-Class |
| Model | HM71-03-3.0-F |
| Operation Mode | Bench-mounted |
| Place of Origin | Mainland China |
| Working Principle | Induction Motor |
| Structure & Working Principle | AC Commutator Motor |
| Mounting Configuration | Horizontal |

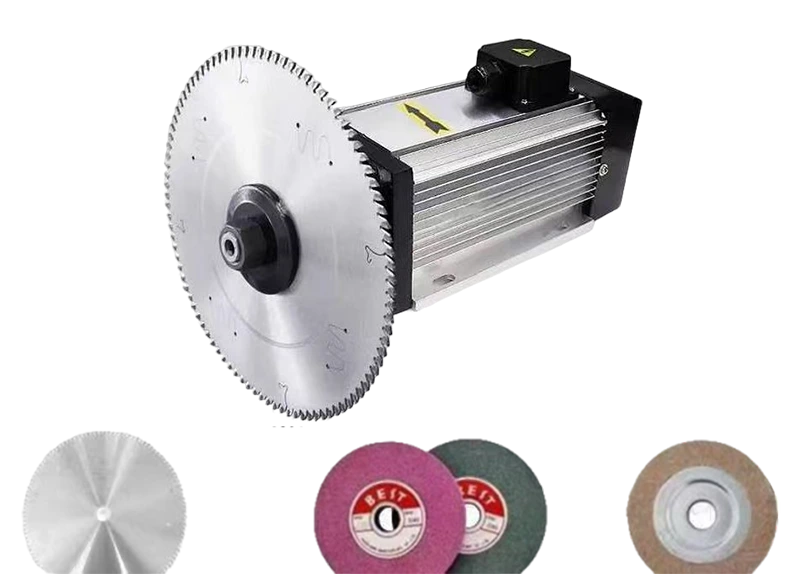

| Saw Blade Selection: Select as needed | Can clamp various grinding tools and clamping devices |
| Multi-leaf Wheel | When clamping a multi-leaf wheel, it can polish and grind. |
| Saw Blade | When clamping a saw blade, it can cut and slot. |
| Grinding Wheel | When clamping a grinding wheel, it can polish and grind. |
| Diamond Grinding Wheel | Clamping a grinding wheel can be used for grinding and polishing. |
| Spindle Motors | 0.75KW-3000rpm-Spindle-Shaft Diameter 25.4mm |
| 1.1KW-3000rpm-Spindle-Shaft Diameter 25.4mm | |
| 1.5KW-3000rpm-Spindle-Shaft Diameter 25.4mm | |
| .2KW-3000rpm-Spindle-Shaft Diameter 25.4mm | |
| 3KW-3000rpm-Right-Hand Thread-Shaft Diameter 25.4mm | |
| 4KW-3000rpm-Right-Hand Thread-Shaft Diameter 25.4mm | |
| 5.5KW-3000rpm-Right-Hand Thread-Shaft Diameter 25.4mm | |
| 7.5KW-3000rpm-Right-Hand Thread-Shaft Diameter 25.4mm | |
| Reverse Thread | 0.75KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm |
| 1.1KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm | |
| 1.5KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm | |
| 2.2KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm | |
| 3KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm | |
| 4KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm | |
| 5.5KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm | |
| 7.5KW-3000rpm-Reverse Thread-Shaft Diameter 25.4mm |
All-Copper Motor
Safe and Efficient
Powerful Bass
Continuous Operation
Energy-Saving and Eco-Friendly
Wide Range of Applications
Widely used for cutting, polishing, slotting, turning, boring, drilling and milling, engraving, grinding, and other processes across multiple materials and industries.
