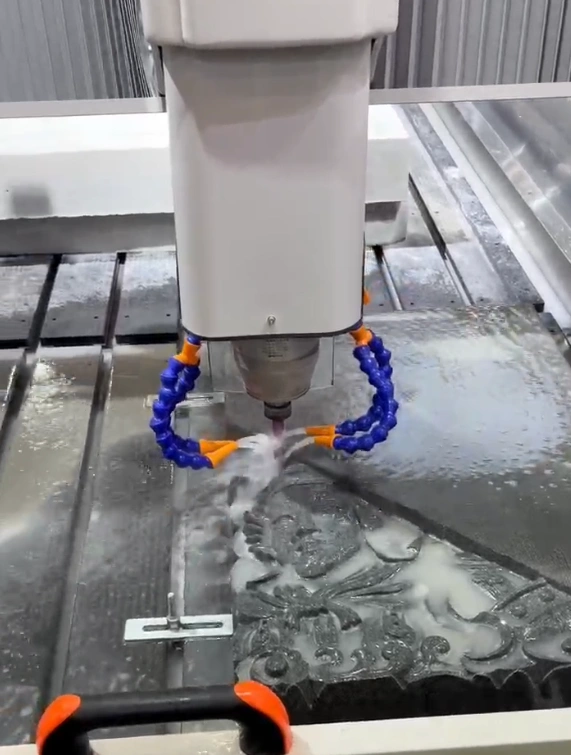

The spindle motors on stone carving machines are prone to damage and have a short service life. How can you avoid this situation?

The fact that stone machine spindles fail quickly and frequently is not primarily due to poor spindle quality. Rather, stone processing itself creates operating conditions that are extremely harsh on the spindle. Combined with several common usage mistakes, this can cut the spindle’s lifespan in half.

I’ve summarized the most critical and genuine reasons below:

1. Stone Itself Is the Spindle’s Natural Enemy

1. Extremely Fine and Hard Dust That Penetrates Every Crevice

Dust from granite and marble is like abrasive powder; once it enters the bearings, it directly wears down the raceways.

Standard spindle seals on engraving machines cannot withstand this, and dust infiltrates within days.

2. High cutting resistance and intense impact

Stone is hard and brittle, causing significant impact at the moment of contact.

Spindle bearings subjected to repeated impacts frequently suffer from fatigue cracks and seizure.

3. Cooling water contains silt and sand, easily flowing back into the spindle

Water mixed with stone dust enters the spindle’s cooling channels, causing blockages → high temperatures → bearing annealing → immediate failure.

II. Operational Habits (Accounting for 70% of Failures)

1. Starting the machine without preheating.

2. Continuing to operate with no water or insufficient water flow

Stone spindles must be water-cooled; a water outage of just 1–2 minutes is enough to render the spindle unusable.

Many users continue working without noticing that the water hose is crushed or the pump is broken.

3. Cutting too aggressively or with excessive depth of cut

→ Excessive load

→ Current spikes

→ Coil overheating, bearing deformation

→ Soon leads to abnormal noises, vibrations, and seizure.

4. Continuing to use dull cutting tools

Dull tools = forced grinding, doubling the spindle load,

overloading both bearings and coils, and drastically shortening their lifespan

III. Equipment and Installation Issues

1. Loose spindle mounting, loose flange

2. Tool protrudes too far, causing excessive wobble

Enormous radial forces cause one side of the spindle bearing to bear the load, making it extremely prone to damage.

IV. Why Do Stone Machine Spindles Wear Out Faster Than Woodworking Machine Spindles?

- Woodworking: Large wood chips are less likely to enter the bearings

- Stone: Fine dust + slurry; even the strongest seals struggle to withstand this over the long term

- Woodworking: Light cutting; Stone: Hard-on-hard contact

V. The simplest and most effective ways to ensure spindle durability

1. Warm up at low speed for 5 minutes before starting

2. Ensure sufficient and clean water flow

3. Use sharp tools; avoid deep cuts and abrupt plunging

4. Install a dust cover on the spindle nose when dust levels are high

5. Wipe the taper bore and clean the coolant channels before shutting down each day

6. Do not exceed the rated speed or run the spindle at full load without material

If you choose us, I can calculate the most durable and efficient machining parameters based on your machine’s specifications:

spindle power (9 kW?), RPM, the type of stone being carved, and the depth of cut

This will significantly extend the spindle’s lifespan.
