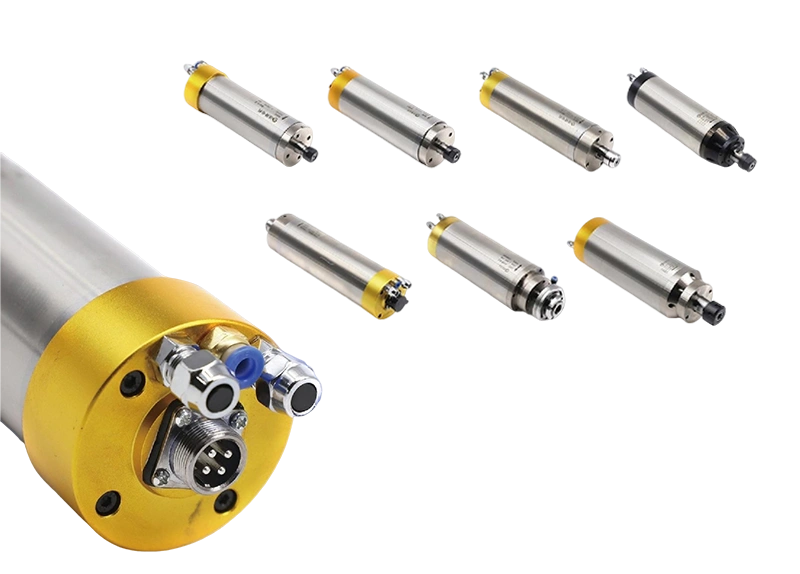

Mold Precision Engraving Spindle Series

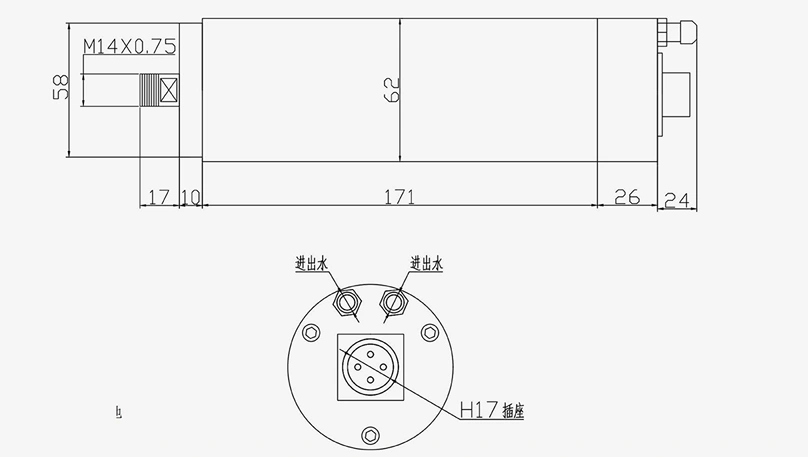

Frequency: 400Hz/700Hz

Voltage: 220V/380V

Power: 1.2KW

Speed: 24000/42000 rpm

Current: 5.5A/4.2A

Chuck: ER11

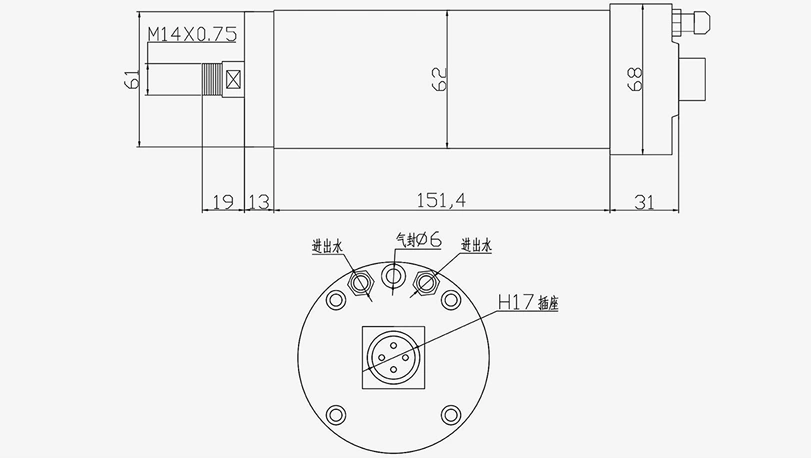

Frequency: 1000Hz

Voltage: 220V/380V

Power: 1.8KW

Speed: 60000 rpm

Current: 6.5A/5.3A

Chuck: ER11

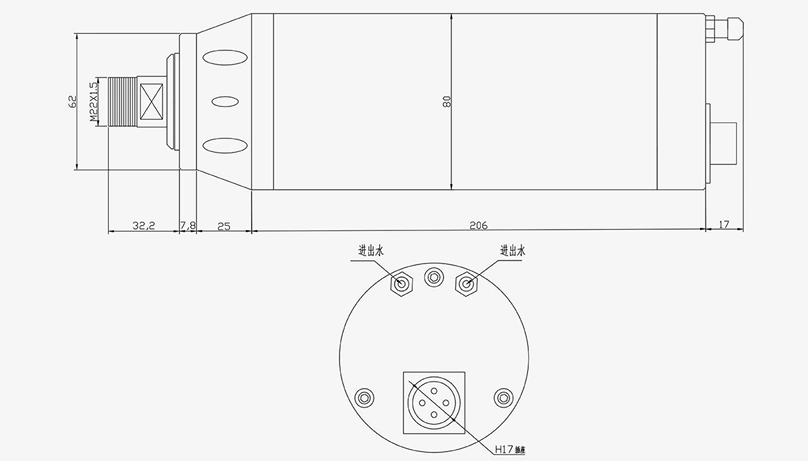

Frequency: 400Hz

Voltage: 220V/380V

Power: 1.5KW

Speed: 24000RPM

Current: 6.8A/5.5A

Chuck: ER16

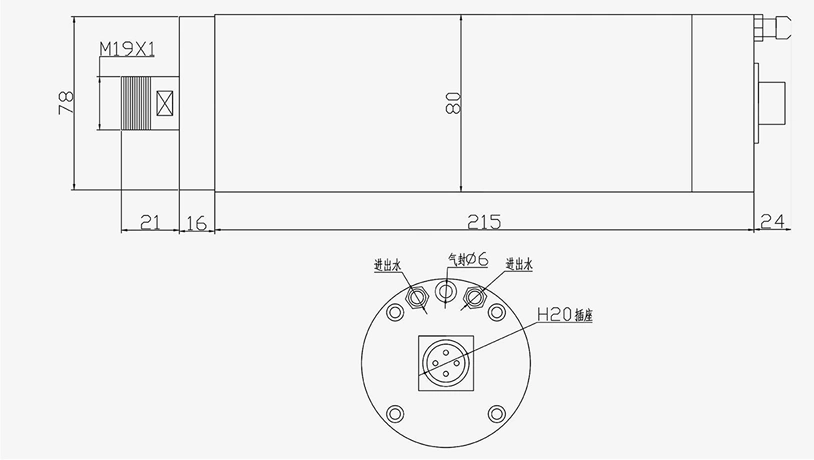

Frequency: 400Hz/700Hz

Voltage: 220V/380V

Power: 2.2KW

Speed: 24000/42000 rpm

Current: 6.8A/5.5A

Chuck: ER16

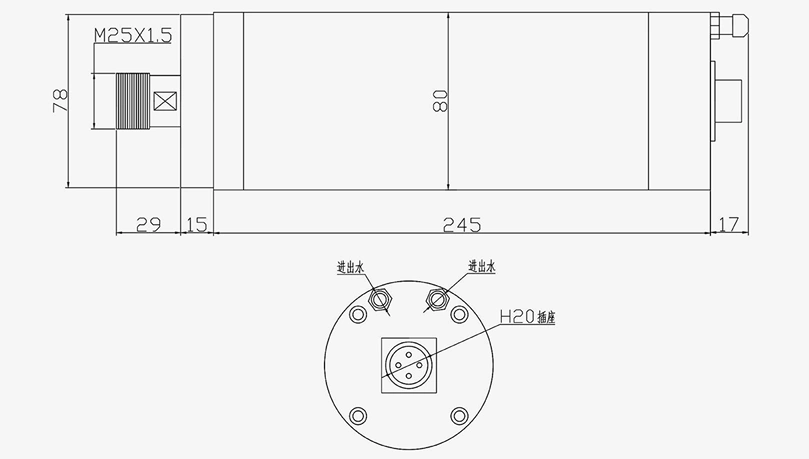

Frequency: 400Hz

Voltage: 220V/380V

Power: 2.2KW

Speed: 24000 rpm

Current: 8A/6.8A

Chuck: ER20

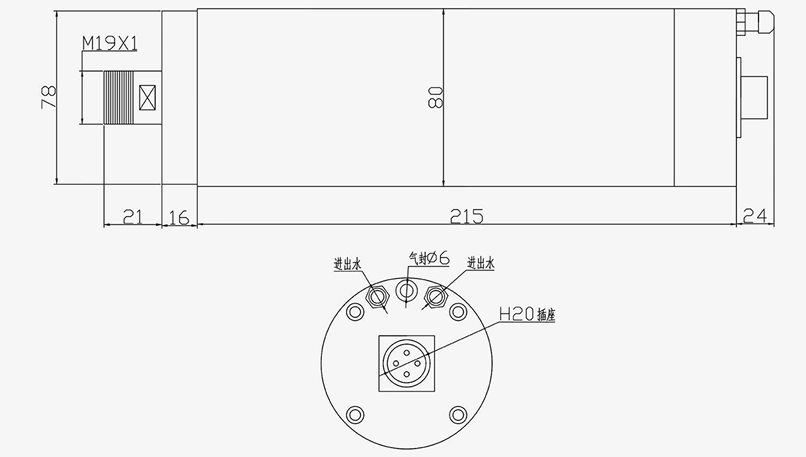

Frequency: 1000Hz

Voltage: 220V/380V

Power: 3KW

Speed: 60000 rpm

Current: 7.8A/5.8A

Chuck: ER16

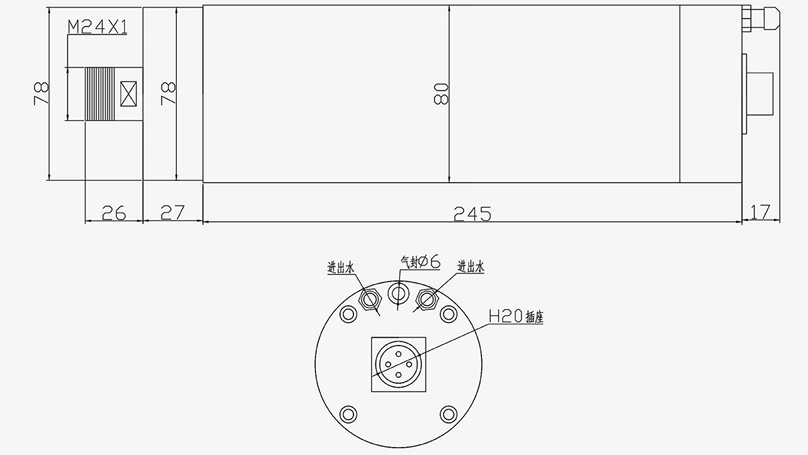

Frequency: 400Hz/700Hz

Voltage: 220V/380V

Power: 3KW

Speed: 24000/42000 rpm

Current: 6.8A/5.5A

Chuck: ER20

Frequency: 800Hz

Voltage: 220V/380V

Power: 3.5KW

Speed: 24000 rpm

Current: 8.8A/7.6A

Chuck: ER20

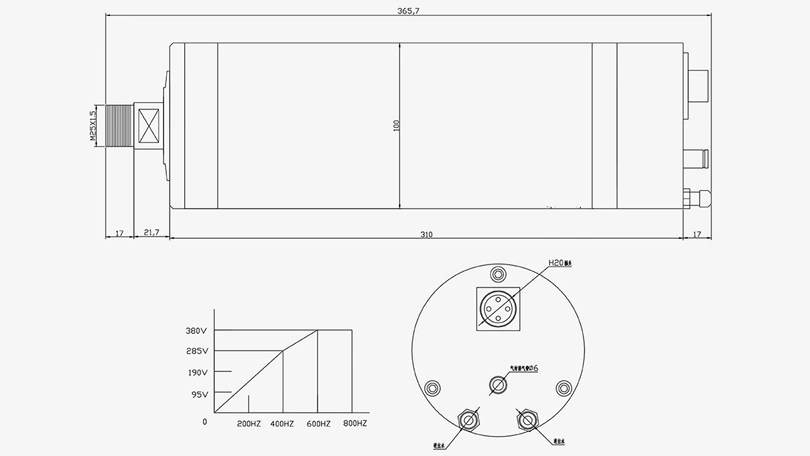

Frequency: 800Hz

Voltage: 220V/380V

Power: 3.5KW

Torque: 3.8NM

Cooling Method: Water-cooled/Oil-cooled

Speed: 24000r/min

Current: 9.5A/8.2A

Chuck: ER20

Air Seal: 0.1-0.2MPa

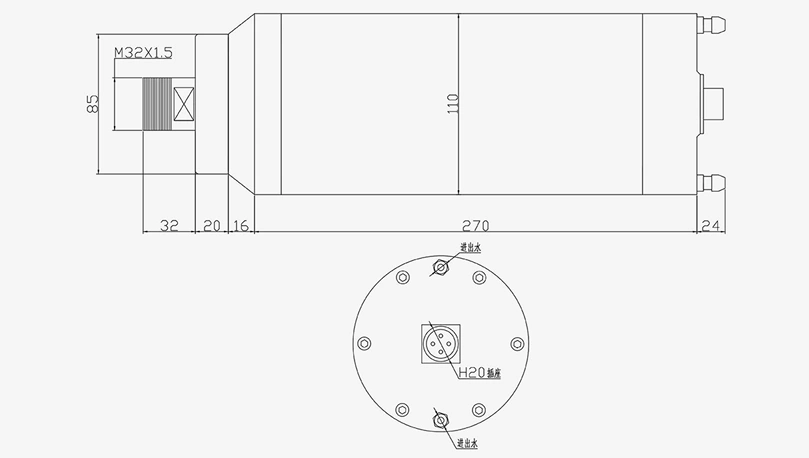

Frequency: 400-800Hz

Voltage: 220V/380V

Power: 4KW

Speed: 12000-24000 rpm

Current: 13.5A/12.5A

Chuck: ER25

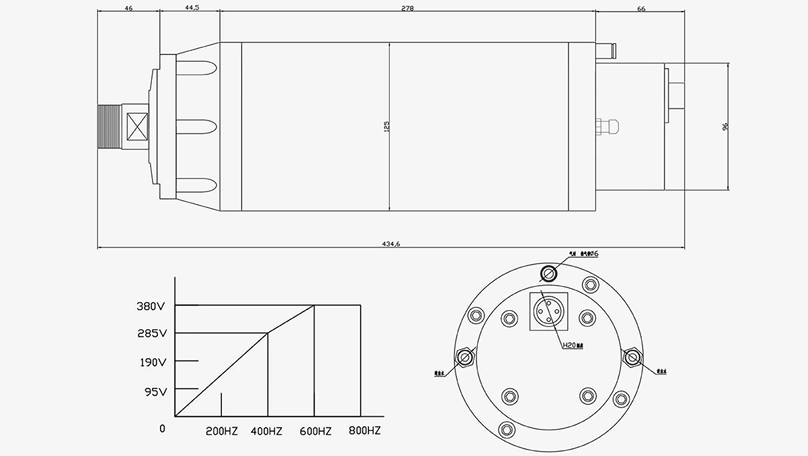

Frequency: 800Hz

Voltage: 220V/380V

Power: 7.5KW

Torque: 8.3NM

Cooling Method: Water-cooled/Oil-cooled

Speed: 24000r/min

Current: 15.5A/13A

Chuck: ER25

Air Seal: 0.1-0.2MPa

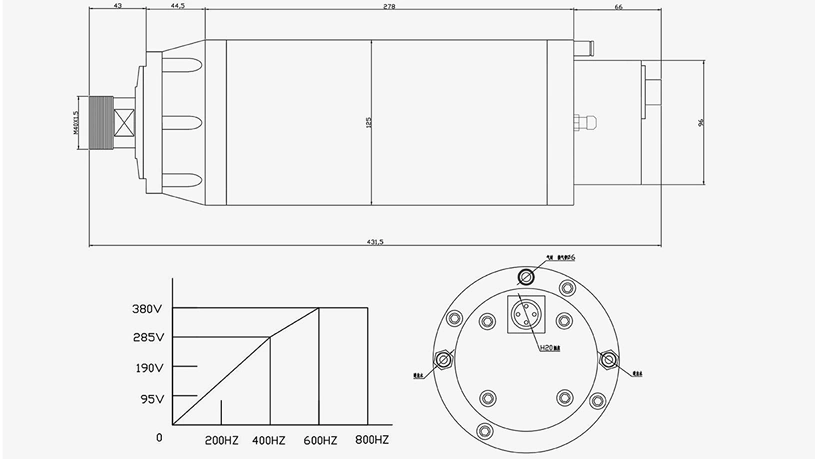

Frequency: 800Hz

Voltage: 220V/380V

Power: 7.5KW

Torque: 8.3NM

Cooling Method: Water-cooled/Oil-cooled

Speed: 24000r/min

Current: 15.5A/13A

Chuck: ER32

Air Seal: 0.1-0.2MPa
